CNC Full Electric Mandrel Tube Benders 2 inches Capability

group name: Mandrel Tube Benders

Min Order: 1 set

brand name: Bossray CNC Tube bender and Lasertube Manufacturer

model: SB-50CNC-E

Nearest port for product export: Shanghai

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, Credit Card, Westem Union

update time: Thu, 14 Nov 2024 14:32:40 GMT

contact supplier

Paramtents

Bending capability OD×WT Φ50.8×2.0 mm
Bending speed Max. 150°/sec
Feeding speed 1000 mm/sec
Feeding accuracy ±0.1 mm
Rotating speed 220°/sec
Rotating accuracy ±0.1°
Voltage 220V, 380V, 415V, 440V, 480V, 600V 3P
Mandrel bending Yes
Special Quick tooling changeover
Axis Full electric

Packging & Delivery

400cm x 95cm x 125cm
Min Order1 set

Briefing

Bossray CNC Full Electric Tube Benders 2 inches bending diameter. Quick changeover.

Detailed

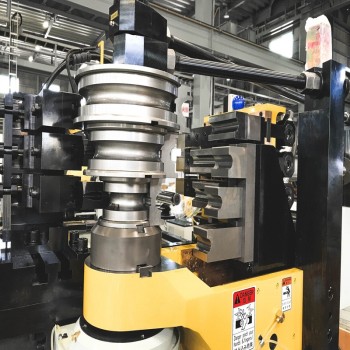

CNC Full Electric Mandrel Tube Benders SB-50CNC-E

Bossray SB-50CNC-E Full Electric Mandrel Tube Bender is the advanced Tube Benders with multi-axis servo motor controlling and multi-layers mould function. The machine applys professional skills of industrial computer and CNC Tube Benders into multi-axis servo motor driving. It can work automatically like feeding,rotating,changing moulds, reading drawings, editing and revising technical documents and correcting datas. What's more, working with robots, it also can loading and unloading automatically, testing pipes and revise technical datas and production procedures according to the test result. It can diagnose fault automatically, 3D pipe display and simulation,3D interference detection etc. It is the first choice for the field of aerospace, nuclear power, automobile, motorcycle, shipbuilding, petrochemical, electricity, gas, boilers, fitness and sports equipment to bending pipes.

11 axis servo control unit.

1-6 stacks tooling are optional.

SB-50CNC-E Mandrel Tube Benders Parameter

Model		SB-50CNC-E
Bending capability OD×WT (carbon steel):		Φ50.8×2.0 mm
Bending radius:		190mm
Bending angle		0～190°
Max bending length with mandrel:		2500mm
Bending speed:		Max. 150°/sec
Bending accuracy:		±0.1°
Feeding speed:		1000 mm/sec
Feeding accuracy:		±0.1 mm
Rotating speed:		220°/sec
Rotating accuracy:		±0.1°
Tools stack:		1 or multiple
Bending:		Electric Servomotor
Feeding/Booster:		Electric Servomotor
Rotating:		Electric Servomotor
Work head shift (horizontal):		Electric Servomotor
Work head shift (vertical):		Electric Servomotor
System hydraulic pressure:		12MPa
Packing size refer:		4000×900×1200mm
Weight refer:		2200kgs

Video

SB-50CNC-E CNC Mandrel Tube Benders Video

Bossray CNC Mandrel Tube Pipe Benders are the advanced Bender with multi-axis servo motor controlling and multi-layer mould function..

SB-50CNC-E Mandrel Tube Benders Features and Advantages

1Bend-arm (C-axis) by servomotor.
2Clamp die by servomotor; pressure die by servomotor.
3Carriage (Y-axis) by servomotor.
4With rear booster is driven by a servo motor.
5Collets (B-axis): rotation by servo motor, grip by servomotor.
6With the roll bending function (PUSH BENDING), can make a big radius by rolling.
7Tooling shift: motion up-down by servomotor with brake; left-right by servomotor.
8PDA (pressure die assist): by servomotor.
9Automatic moving parts lubrication systems.
10Standing pedestal, serves emergency stop, double-hand startup, and remote control.
11Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control, 3D bending simulation, and collision prevention.

OPTION

1Multi radius
2Left and right direction bending
3Punching device
4Cutting device
5Safety fence
6Safety mat or Light curtain protection
7Bend 1.0*D radius or more tight radius
8Fan / Water / Oil cooling system
9Robot loading and unloading systems
10Safe blanket / Infrared alarm device
11SIEMENS 3D convert
12Electric power supply transformer
13Quick tooling change
14Special tooling design and brass mandrel
