CNC Tube Benders Die Sets
- group name
- Bending Tooling
- Min Order
- 1 set
- brand name
- Bossray CNC Tube bender and Lasertube Manufacturer
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, Credit Card, Westem Union
- update time
- Thu, 14 Nov 2024 14:28:28 GMT
Paramtents
Bend die CLR x 2
Clamp die Tube outside diameter
Pressure die Tube outside diameter
Ball Mandrel Tube inner diameter
Wiper die Tube outside diameter
Collet Tube outside diameter
Packging & Delivery
-
Min Order1 set
Briefing
There are distinct differences from what would be considered sets of bender tooling and a tooling system.
Detailed

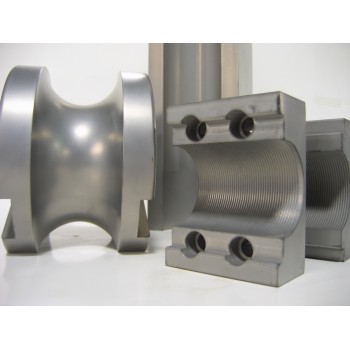

BOSSRAY ROTARY DRAW TOOLING SOLUTIONS
There are distinct differences from what would be considered sets of bender tooling and a tooling system. Simply defined a set of tools typically refers to the (generally five piece) family of dies to bend a tube for a given outside diameter and wall thickness, to a single specified centerline radius. A fabricating company may have dozens of tooling sets each specific to the job it is designed for, and the machine designated to perform the job. In the case of a bending job shop they may have hundreds of die sets.
Rotary draw bending is by nature more involved and complicated but subsequently the most versatile. It is the only method that is suitable to produce high quality wrinkle free bends in tight radius thin wall tubes. It is by far the most used for any application where support is needed to control the stretching and compression of material and simultaneously prevent the tube from collapsing.
SPECIFY
Tube O.D. and Wall Thickness
Center Line Radius CLR
Make and Size of Benders
Degree of Bending
Rotation of Bender
Interlock Dimensions
Desired Production
As one of the world's elite bending die makers, Bossray supplies the entire package for rotary-draw tube and pipe-bending. Our dies are manufactured with CNC machining, the most advanced machining technology in the industry, making our new generation of Bossray die sets unsurpassed in fit and finish. Whether you need bend, clamp, or pressure dies, Bossray has what you need. Plus, these tube and pipe-bending dies are tough!
