Automatic CNC Mandrel Tube Bending Machines 5 inches Draw Bending
- group name
- CNC Tube Benders
- Min Order
- 1 set
- brand name
- Bossray CNC Tube bender and Lasertube Manufacturer
- model
- SB-130CNC
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, Credit Card, Westem Union
- update time
- Thu, 14 Nov 2024 14:43:49 GMT
Paramtents
Bending capability OD×WT Φ130×8.0 mm
Bending speed Max. 60°/sec
Feeding speed 800 mm/sec
Feeding accuracy ±0.1 mm
Rotating speed 180°/sec
Rotating accuracy ±0.1°
Voltage 220V, 380V, 415V, 440V, 480V, 600V 3P
Mandrel bending Ball Mandrel
Bending Cold draw bend
Certificate CE, ETL
Packging & Delivery
-
Min Order1 set
Briefing
It can bend Max. tube OD 130mm. The moves are controlled by the advanced IPC system.
Detailed

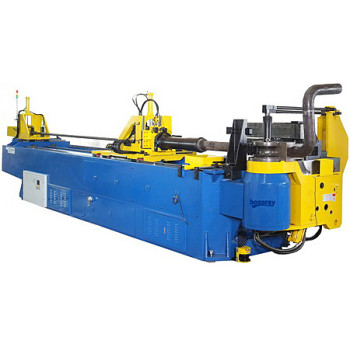

Automatic CNC Mandrel Tube Bending Machines 5 inches Capacity
Bossray Automatic CNC Mandrel Tube Bending Machines handle everyday bending tasks as well as the most demanding, high-precision jobs. These CNC Mandrel Tube Bending Machines are perfectly suited for production in any industrial setting including Automotive, Motorcycle & ATV, Fitness GYM, Medical and Furniture, etc. Our newest CNC Mandrel Benders are available in all-electric, hybrid electric, or hydraulic drive models.
Bossray High Performance CNC Mandrel Tube Bending Machines provide energy-efficient production with the most advanced technology and features. Additionally, our CNC Benders function alone or seamlessly integrate into any production setup. Bossray can combine any CNC Benders with our automated loaders/unloaders robot arms or CNC laser tube to create a custom work cell solution. These custom work cells increase production and free up your staff for more important tasks. Request a quote for any of our CNC Automatic Mandrel Tube Bending Machines online.
130CNC Mandrel Tube Bending Machines Parameter
|
Model |
SB-130CNC |
|||
|
Bending capability OD×WT (carbon steel):
|
Φ130×8.0 mm |
|||
|
Bending radius: |
400mm |
|||
|
Bending angle |
0～180° |
|||
Max bending length with mandrel: | 4000mm | |||
Bending speed: | Max. 60°/sec | |||
Bending accuracy: | ±0.1° | |||
Feeding speed: | 800 mm/sec | |||
Feeding accuracy: | ±0.1 mm | |||
Rotating speed: | 180°/sec | |||
Rotating accuracy: | ±0.1° | |||
Tools stack: | 1 or multiple | |||
Bending: | Electric Servomotor or Hydraulic | |||
Feeding/Booster: | Electric Servomotor | |||
Rotating: | Electric Servomotor | |||
Work head shift (horizontal): | Electric Servomotor option | |||
Work head shift (vertical): | Hydraulic /Electric Servomotor option | |||
System hydraulic pressure: | 16 MPa | |||
Packing size refer: | 6100×1400×1600mm | |||
Weight refer: | 7500kgs | |||
Video
Automatic CNC Mandrel Tube Bending Machines Video
It is the most ideal bending equipment for aerospace, automobile, locomotive, motorcycle, shipyard, petrochemical,electric power, natural gas, nuclear industry, boiler, vehicles, fitness equipment and sports equipment. The range of the multi stacks are from 1 layer to 6 layers.
Automatic CNC Mandrel Tube Bending Machines Features and Advantages
- 1Bend-arm (C-axis) by Hydraulic / Servomotor
- 2Clamp die by hydraulic or servomotor; pressure die by hydraulic or servomotor.
- 3Carriage (Y-axis) by servomotor.
- 4With rear booster is driven by a servo motor.
- 5Collets (B-axis): rotation by servo motor, grip by hydraulic or servomotor.
- 6 With the roll bending function, can make a big radius by rolling.
- 7Tooling shift: motion up-down by hydraulic or servomotor with brake; left-right by servomotor.
- 8PDA (pressure die assist): by hydraulic or servomotor.
- 9Automatic moving parts lubrication systems.
- 10Standing pedestal, serves emergency stop, double-hand startup, and remote control.
- 11Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control, 3D bending simulation, and collision prevention.
OPTION
- 1Multi radius
- 2Left and right direction bending
- 3Punching device
- 4Cutting device
- 5Safety fence
- 6Safety mat or Light curtain protection
- 7Bend 1.0*D radius or more tight radius
- 8Fan / Water / Oil cooling system
- 9Robot loading and unloading systems
- 10Safe blanket / Infrared alarm device
- 11SIEMENS 3D convert
- 12Electric power supply transformer
- 13Quick tooling change
- 14Special tooling design and brass mandrel
