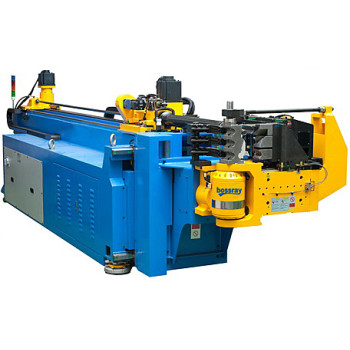

CNC Tube Benders with Draw Bending 2 inches bending capability
- group name
- CNC Tube Benders
- Min Order
- 1 set
- brand name
- Bossray CNC Tube bender and Lasertube Manufacturer
- model
- SB-50CNC
- Nearest port for product export
- Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, Credit Card, Westem Union
- update time
- Thu, 14 Nov 2024 14:29:13 GMT
Paramtents
Bending capability OD×WT Φ50.8×2.0 mm
Bending speed Max. 150°/sec
Feeding speed 1000 mm/sec
Feeding accuracy ±0.1 mm
Rotating speed 220°/sec
Rotating accuracy ±0.1°
Voltage 220V, 380V, 415V, 440V, 480V, 600V
Mandrel bending Yes
Option Quick tooling changeover
Packging & Delivery
- 400cm x 95cm x 125cm
-
Min Order1 set
Briefing
Intelligence CNC Tube Benders adopts IPC system and professional software, 2 inches capability.
Detailed
2 Inches Capability CNC Tube Benders
Bossray 2 Inches CNC Tube Benders handle everyday bending tasks as well as the most demanding, high-precision jobs. These CNC tube benders are perfectly suited for production in any industrial setting including Automobile, Motorcycle & ATV, Fitness GYM, Medical and Furniture, etc. Our newest CNC Tube benders are available in all-electric, hybrid electric, or hydraulic drive models. Bossray CNC tube benders provide energy-efficient production with the most advanced technology and features. Additionally, our CNC tube benders function alone or seamlessly integrate into any production setup. Bossray can combine any CNC benders with our automated loaders/unloaders robot arms or CNC laser tube to create a custom work cell solutions. These custom work cells increase production and free up your staff for more important tasks. Request a quote for any of our CNC Tube Benders online.
50CNC Tube Benders Parameter
|
Model |
SB-50CNC |
|||
|
Bending capability OD×WT (carbon steel):
|
Φ50.8×2.0 mm |
|||
|
Bending radius: |
180mm |
|||
|
Bending angle |
0～190° |
|||
Max bending length with mandrel: | 2500mm | |||
Bending speed: | Max. 150°/sec | |||
Bending accuracy: | ±0.1° | |||
Feeding speed: | 1000 mm/sec | |||
Feeding accuracy: | ±0.1 mm | |||
Rotating speed: | 220°/sec | |||
Rotating accuracy: | ±0.1° | |||
Tools stack: | 1 or multiple | |||
Bending: | Electric Servomotor | |||
Feeding/Booster: | Electric Servomotor | |||
Rotating: | Electric Servomotor | |||
Work head shift (horizontal): | Electric Servomotor | |||
Work head shift (vertical): | Electric Servomotor | |||
System hydraulic pressure: | 12MPa | |||
Packing size refer: | 4000×900×1200mm | |||
Weight refer: | 2200kgs | |||
Video
2 Inches CNC Mandrel Tube Benders Video
Bossray CNC Tube Bender is the advanced Bender with multi-axis servo motor controlling and multi-layer mould function.
2 Inches CNC Tube Benders Features and Advantages
- 1Bend-arm (C-axis) by servomotor.
- 2Clamp die by hydraulic or servomotor; pressure die by hydraulic or servomotor.
- 3Carriage (Y-axis) by servomotor.
- 4With rear booster is driven by a servo motor.
- 5Collets (B-axis): rotation by servo motor, grip by hydraulic or servomotor.
- 6 With the roll bending function, can make a big radius by rolling.
- 7Tooling shift: motion up-down by hydraulic or servomotor with brake; left-right by servomotor.
- 8PDA (pressure die assist): by hydraulic or servomotor.
- 9Automatic moving parts lubrication systems.
- 10Standing pedestal, serves emergency stop, double-hand startup, and remote control.
- 11Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control, 3D bending simulation, and collision prevention.
OPTION
- 1Multi radius
- 2Left and right direction bending
- 3Punching device
- 4Cutting device
- 5Safety fence
- 6Safety mat or Light curtain protection
- 7Bend 1.0*D radius or more tight radius
- 8Fan / Water / Oil cooling system
- 9Robot loading and unloading systems
- 10Safe blanket / Infrared alarm device
- 11SIEMENS 3D convert
- 12Electric power supply transformer
- 13Quick tooling change
- 14Special tooling design and brass mandrel
